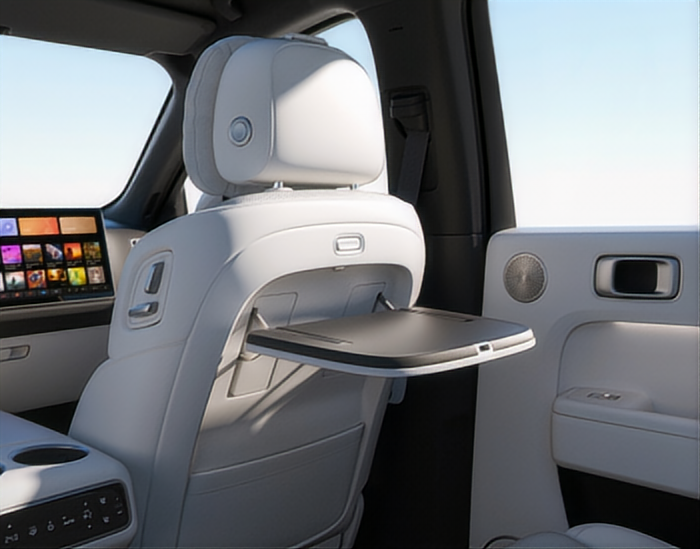

Self-balance Seatback Table
- Functions
- Controls the folding or unfolding of the seatback table according to CAN/LIN bus commands, featuring smooth operation, soft start/stop, and adjustable speed.
- Manual folding of the seat table triggers the follow-up function.
- Automatically adjusts the horizontal position of the seat table based on the on-board gyroscope signal to maintain real-time horizontal alignment with the sea level.
- Equipped with anti-pinch protection.
- Performances
- Operating voltage：9-16V，Temperature range： -40~85°C
- Quiescent Current：<100μA，Position Adjustment Error： ±0.5°
- Brushless Motor Drive，Motor Current：<10A
- Communications
- LIN/CAN
- Regulations
- EMC： Class5，GB11552；Restricted substances：ELV, REACH, POPS, Asbestos, BPR
Living Presence Detection Radar
- Functions
- Respiration/heartbeat detection
- Supports children, pets, and multi-occupant scenarios
- UWB or 60GHz mmWave radar options
- Performances
- Operating voltage：9-16V，Temperature range： -40~85°C
- Water/dust resistance： IP67，Quiescent current： <100μA
- Working current： <30mA，Accuracy： 90% (respiration), 80% (heartbeat)
- Communications
- LIN/CAN
- Regulations
- EMC： Class5，Restricted substances：ELV，Safety： Euro NCAP
