Intelligent Tailgate Domain

2nd Gen Capacitive Foot Kick Sensor

Functions
Foot kick/foot sweep motion recognition with leading algorithm, offering higher sensitivity and accuracy than industry peers
False trigger avoidance (e.g., water splashes, pets, pedestrians)
Anti-play protection function, preventing motor overheating to the greatest extent.
Fully imported chip solution for high-end client requirements
Performances
Operating voltage： 9-16V，Temperature range： -40~85°C
Water/dust resistance：IP6K9K，Quiescent current： <50μA
Working current： <10mA，Trigger rate： >95%
Communications
LIN/Hardwire
Regulations
EMC：Class 5；Restricted substances：ELV, REACH, POPS, Asbestos, BPR

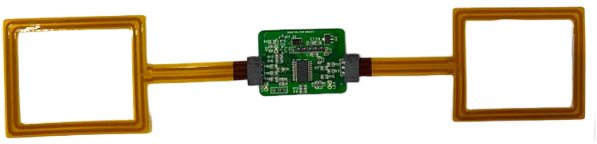

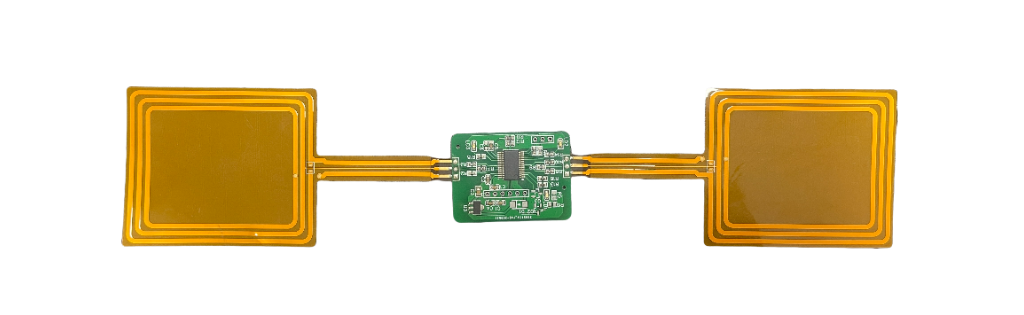

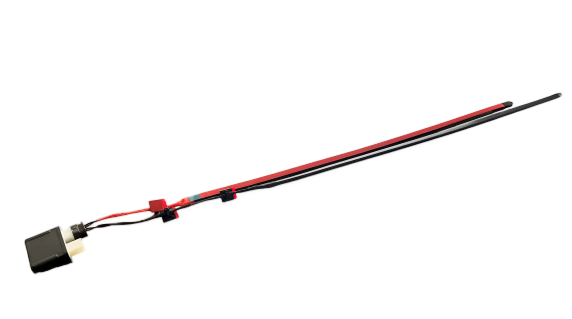

3rd Gen Capacitive Foot Kick Sensor

Functions
Foot kick/foot sweep motion recognition with leading algorithm, offering higher sensitivity and false trigger avoidance (e.g., water splashes, pets, pedestrians)
Anti-Playing function
Domestic integrated chip reduces cost and PCB complexity
One-piece molding integrates controller and sensing electrodes, simplifying assembly
Performances
Operating voltage：9-16V，Temperature range：-40~85°C
Water/dust resistance：IP6K9K，Quiescent current：<100μA
Working current： <10mA，Trigger rate：>95%
Communications
LIN/Hardwire
Regulations
EMC：Class 5
Restricted substances： ELV, REACH, POPS, Asbestos, BPR

Lighting indicated Radar Sensor

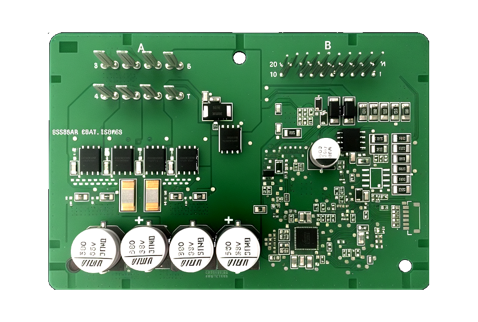

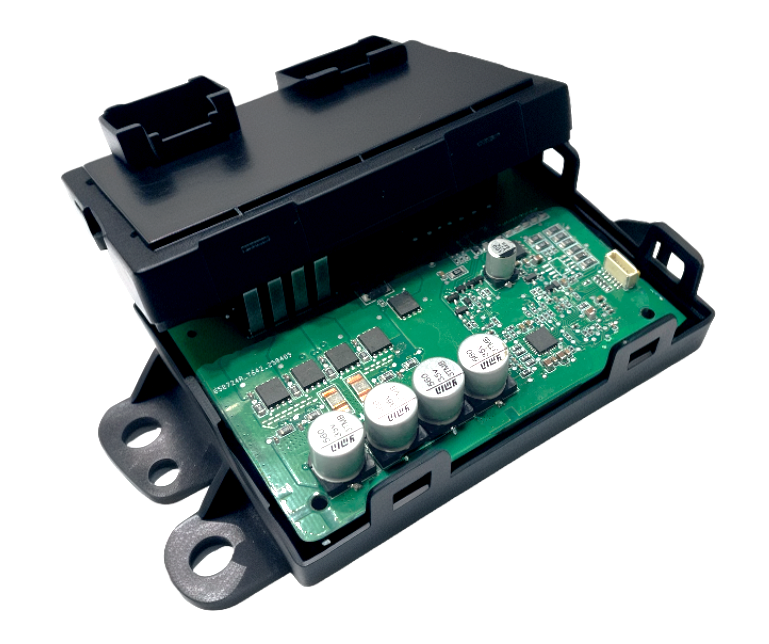

Electric Tailgate Controller

Functions
Supports multiple opening methods (e.g. remote key, in-vehicle button, foot kick sensor, mobile app control)
Small size, light weight, built-in buzzer
Automatically memorizes the height of tailgate opening, supports opening degree setting
Supports anti-splitting function, and reverse movement of obstacles when encountering obstacles, avoid clamping people or damaging hardware
Equipped with multiple safety mechanisms such as overload protection, temperature protection, and fault diagnosis to ensure stable system operation
Performances
Opening/Closing Speed：30~60cm/s，Stroke Detection Accuracy：±1mm
Protection Rating：IP5K2，Anti-pinch Force Threshold：75~200N
Obstacle Detection Response Time：<100ms
Communications
CAN/CANFD/LIN Bus Protocol

Electric Towbar Unit

Functions
Cost-effective solution for hardware, compatible with both imported chip and domestic chip
Compatible with electric trailer towbar control and trailer light control requirements
Realizes control of electric foldable towbar
Implements coordinated control of trailer lights and vehicle taillights
Trailer connection status detection and judgment
Supports large screen button release of electric trailer towbar function
Electric folding towbar with anti-pinch function during movement
Fault diagnosis functions such as overcurrent, over-voltage, under-voltage, over-temperature, etc.
Performances
Protection Rating：IP5K2，Anti-pinch Force Threshold：100~200N
Obstacle Detection Response Time：<100ms
Communications
CAN/CANFD/LIN Bus Protocol

Active Spoiler Schutter Module

Functions
Real-time monitoring of vehicle speed, acceleration, steering angle, etc.
Automatic adjustment of tail wing angle, balancing downforce and wind resistance
One-touch switching of various modes (preset street/sport/track), combining everyday comfort with extreme driving needs
Dual Hall sensors, response speed of 10ms, angle control accuracy of ± 0.5 °
Supports CAN/CANFD/LIN protocol
Performances
Working voltage：9-16V，Rated output capacity：20A
Static current：＜ 100uA，Working temperature： -40 ℃~85 ℃
Communications
CAN/CANFD/LIN总线协议
Regulations
EMC (Electromagnetic Compatibility)：Class 3

Spindle Drive

Functions
The tailgate features automatic opening and closing from any position, with accurate opening angle control via Hall sensor position counting, ensuring smooth movements throughout its full range of motion
Tailgate can be stopped in any position ensured by mechanical friction
Automatic closing function triggered by manual closing action based on Hall velocity detected from tailgate position change
Anti-pinch function based on sensitive obstacles detection algorithms during automatic running
Motor thermal management algorithm based on motor thermal model calibration
Performances
Full Range Power opening/closing cycle time (4.5 to 5.5)+/- 0.5 s
Openning Angle Accuracy +/- 1°
Slope Gradient 20%
Manual Operating Force @ Power off is adjustable according to the requirement
Slamming Speed Limit
Axial tensile strength＞5000N
Anti-Pinch Protection Force adjustable according to the requirement
Noise ≤ 45dB
Durability Cycles＞50k
Motor Thermal Protection Minimum Running Cycle 10
Communication Interface CAN
Electromagnetic Compatibility (EMC) Class 3
Prohibited Substances ELV, REACH, POPs, asbestos
Regulations
ELV(GB/T30512), EU/UK ELV(2000/53/EC, SI 2020/818), REACH(1907/2006/EC), POPS(EU2019/1021), BPR(EU528/2012), SMTC 5 500 001, SMTC 5 500 002, SMTC 5 500 003, SMTC 5 500 008

L-shaped Spindle Drive

Functions
Tailgate electric opening and closing with high tensile strength and low operating noise, optimizing product process
System self-learning function, automatically memorizing the height of tailgate opening, supports opening degree setting
Platformized design, with 90% of the parts available for shared use, empowers automakers to reduce costs and increase efficiency
Performances
Water and Dust Resistance Rating：IP52，Adjustable Torque Range：0.1Nm - 0.6Nm
Number of Hall Magnetic Poles：5 pairs，Noise Level at Load：≤45dB @1m
Regulations
Electromagnetic Compatibility (EMC)： Class 3
Prohibited Substances：ELV, REACH, POPs, asbestos

Counterbalance Spindle Drive

Functions
Used in conjunction with electric spacers to assist in the motorized opening and closing of the tailgate
Keeps the tailgate balanced
Performances
Operating Voltage：9-16V，Operating Temperature：-30~80°C
Operating Current：1A - 15A，Noise Level at Load：≤45dB @1m
Regulations
Prohibited Substances：ELV, REACH, POPs, asbestos

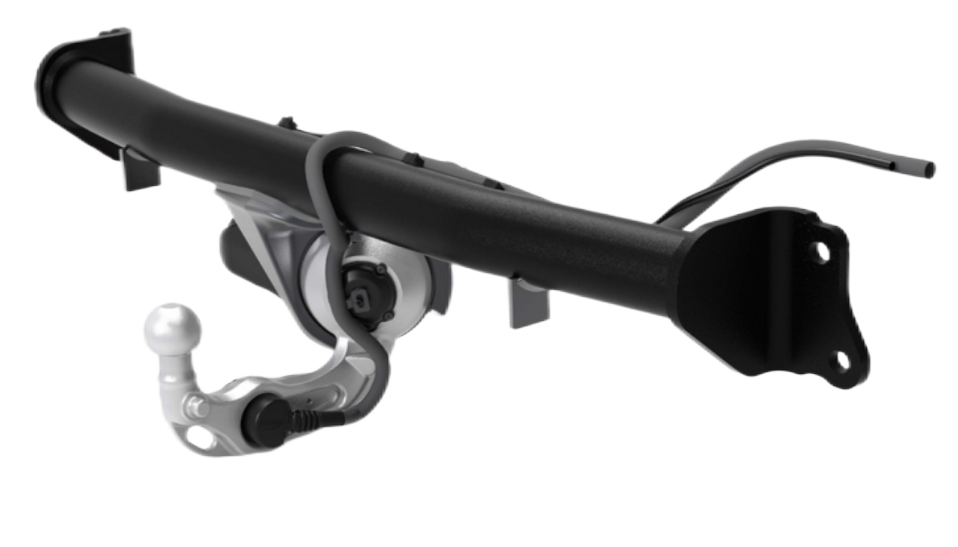

Electric Towbar Unit

Functions
One-click electric control, built-in motor drive, automatic extension and retraction of towbar can be achieved through mechanical buttons and HMI buttons
Heavy load structure design, made of high-strength alloy steel with anti-rust coating, maximum allowable trailer weight
Waterproof grade IP67, suitable for harsh working conditions
Compatible with the 13-pin standard interface, easy to operate and plug-and-play
Regulations
ECE R55, GB32087
