Multi Water Valve Actuator
- Functions
- Precisely controls the opening, closing, adjustment, and flow rate of water valves
- Features self-learning capability, 360° rotation angle, suitable for various water valve openings
- Various application scenario (water valve, EXV, AGS, charging port cover, etc.)
- Industry-leading algorithm that provides real-time compensation for assembly gaps and wear-induced gaps over system durability, ensuring control accuracy meets requirements throughout the product lifecycle
- Utilizes brushless motors with extended utilization and low noise
- Offers mature solutions with both imported and domestic chips to meet diverse customer needs
- Performances
- Water & Dust Resistance：IP6K9K，pplicable Torque：0.2Nm–3Nm
- Operating Current： < 700mA，Control Accuracy：< ±1°
- Noise（dB）with 1.8Nm load：<38dB @100cm
- Communications
- LIN/Hardwire
- Regulations
- EMC：Class 5，Restricted Substances： ELV, REACH
Brushless Air Blower
- Functions
- Provides ventilation, cooling, and air circulation for automotive HVAC systems
- Brushless Motor Design – Superior NVH performance with overall noise levels of 40~60dB; harmonic noise ≥10dB lower than overall noise
- Precise Speed/Airflow Control – Utilizes FOC (Field-Oriented Control) for optimized efficiency and responsiveness
- High Durability – Extended utilization with robust construction
- Protection Features – Over-temperature, over-voltage, and stall detection for safe operation
- Performances
- Operating Voltage：9-16V DC，Operating Temp：-40°C to +85°C
- IP Rating：IP64 (Dust & Water Resistant)，Standby Current：< 100μA
- Communications
- LIN / Hardwire (PWM)
- Regulations
- EMC：Class 3，Restricted Substances： Compliant with ELV, REACH

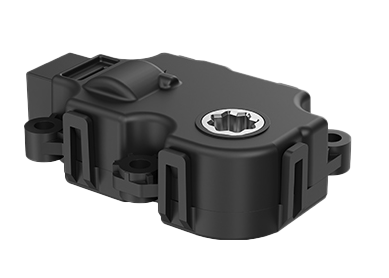

Air-conditioning Vent Actuator
- Functions
- Controls the opening, closing, or angle adjustment of air vent blades to regulate airflow direction and volume.
- Gearbox provides high static reverse drive force, ensuring blade position retention within a certain range during power-off
- Solutions available for both imported and domestic chips to meet different customer requirements
- Supports LIN auto-addressing functionality
- Compact dimensions, max.size 73*46*25 mm, lightweight ~50g
- Performances
- Water & dust resistance：IP52，Standby current： <100μA
- Operating current： <300mA，Load capacity： <0.6Nm
- Communications
- LIN
- Regulations
- EMC：Class 3，Restricted substances： ELV compliant
Thermal Management Domain Controller
- Functions
- Integrates control of multiple components (pumps, water valves, refrigerant valves, sensors) within the thermal management system, offering cost efficiency
- Enables OTA (Over-the-Air) updates for the vehicle's thermal management system
- Supports functional safety ASIL B
- Based on AUTOSAR architecture, integrates multiple pre-driver types, and supports various motor drives (BLDC, brushed DC, stepper motors)
- Performances
- Operating temperature range： -40°C~125°C
- Operating voltage range：9V~16V
- No-load operating current： <100mA @12V，Standby current： <100μA @12V
- Communications
- CAN
- Regulations
- EMC：Class 3，Restricted substances：ELV compliant
