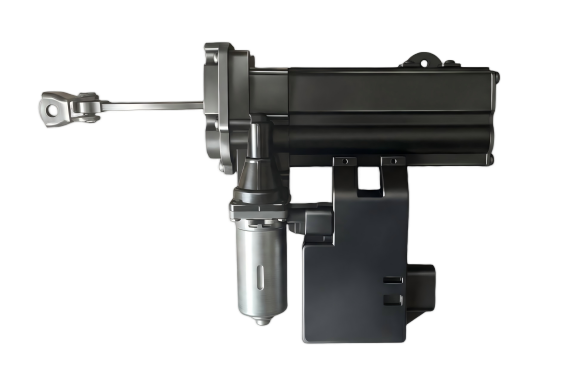

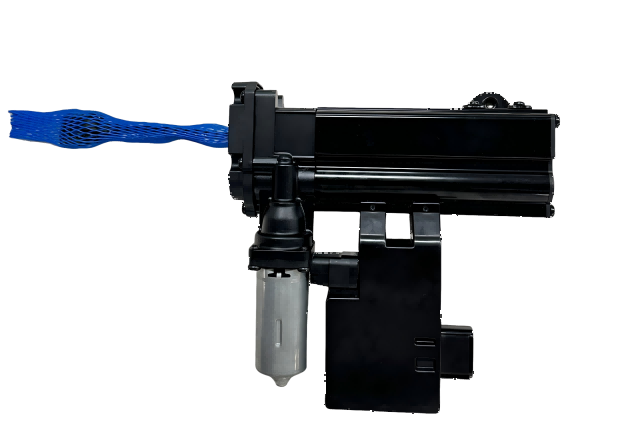

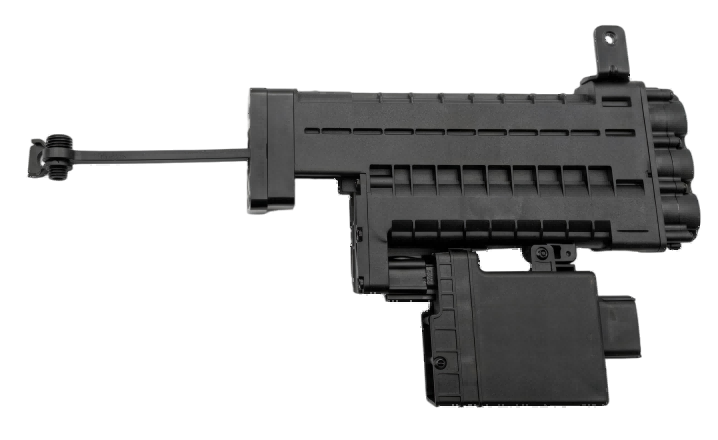

Power operating Door Controller + Actuator
- Functions
- Electric door opening and closing function, equipped with a six-axis gyroscope, can achieve precise angle of opening and closing
- Hovers mechanically in any position without position limitation
- Slope compensation ensures consistent door opening and closing force in any situation
- Anti-pinch function, automatically reverses and stops when encountering obstacles
- Performances
- Boosting function： ≤ 20N full angle propulsion，Windproof level：Level 5
- Violent door opening and closing：2m/s，Over opening intensity：> 10000N
- Communications
- LIN/CAN
- Regulations
- Electromagnetic Compatibility (EMC)：Class 3
- Prohibited Substances：ELV, REACH, POPs, asbestos

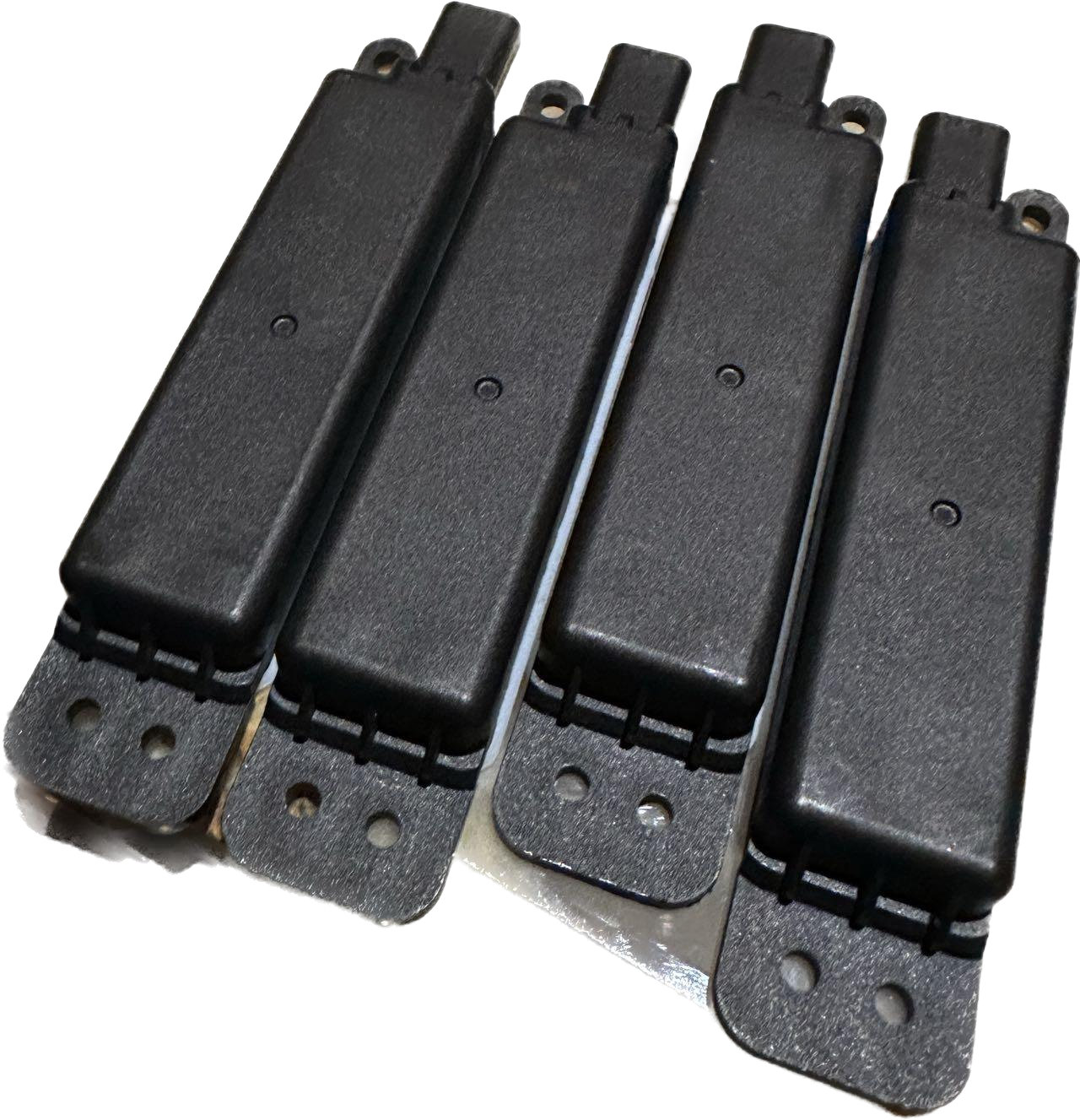

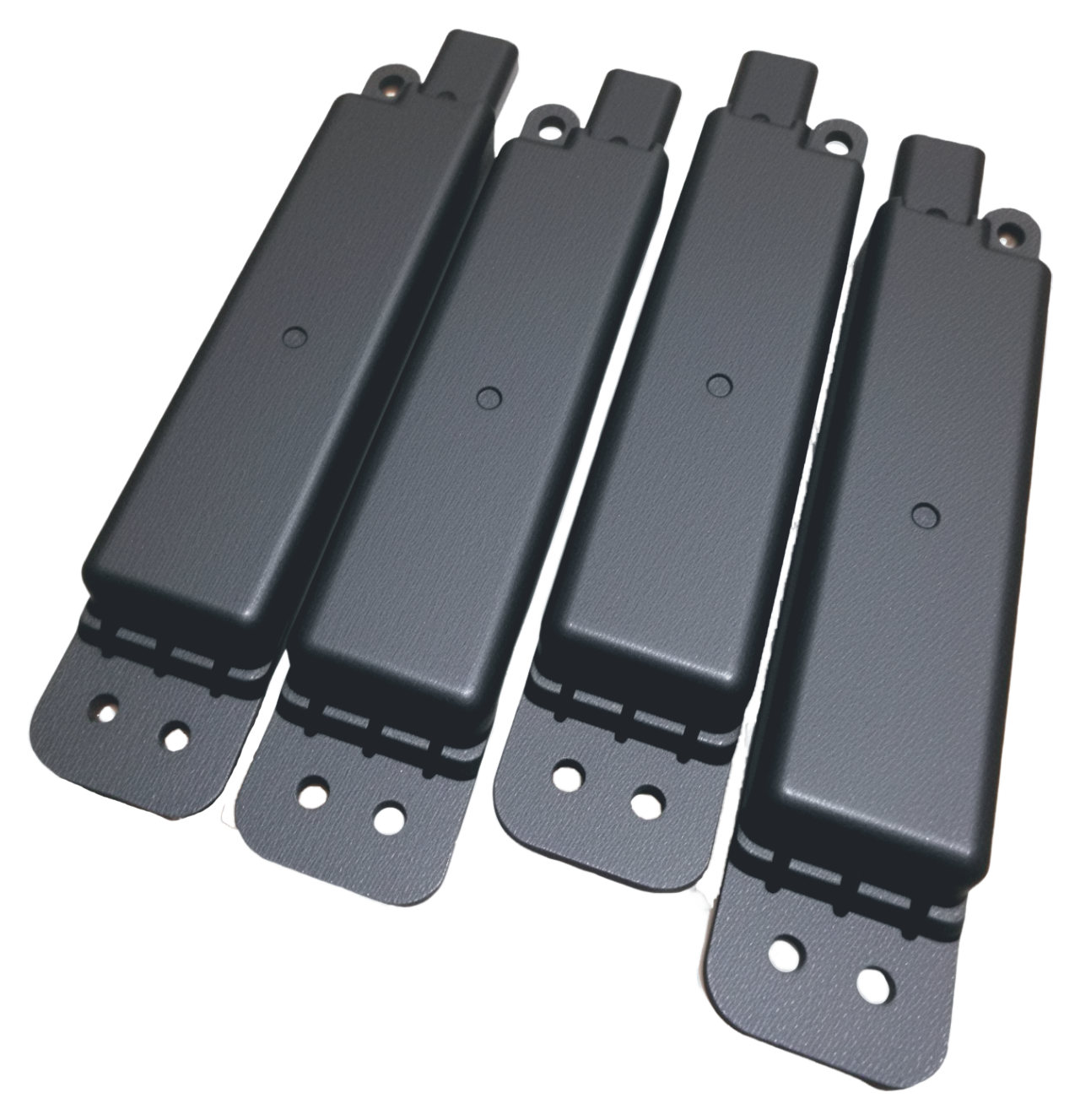

Door Collision Detection Sensor
- Functions
- Obstacle detection, adopts 79GHz frequency with large bandwidth and high precision detection
- Large FOV (120°×120°), Horizontal + Vertical measurement capability
- Performances
- Working current：<150mA，Working voltage：DC 12V
- Detection distance：0.1~5m，Detection angle：±60°，Speed resolution：0.03m/s
- Protection Level：IP67，Distance resolution：0.1m，Angle resolution：1°
- Communications
- CAN

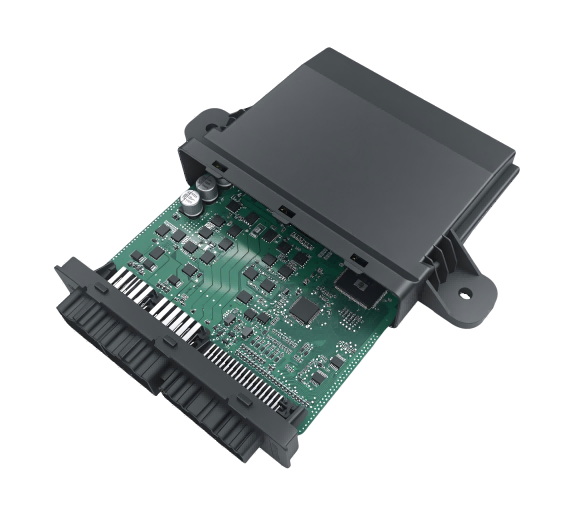

Door Control Unit
- Functions
- Window up/down control for framed or frameless doors with short-distance window anti-pinch capability
- Easily folds and unfolds mirror with heating funtion
- Door lock cinch and E-Release control
- Hidden door handle with folding and unfolding control
- Controls door lamp, floor lamp, logo lamp, side turn lights and blind indicator etc.
- Optional integrated electric side door drive
- Performances
- Operating voltage： 9-16V，Temperature range：-40~85°C
- Window anti-pinch force：75N±15N，Quiescent current： <100μA
- Communications
- HS-CAN Communication
- Regulations
- Window anti-pinch function fulfill with regulations
- Restricted substances：ELV, REACH, POPS, Asbestos, BPR

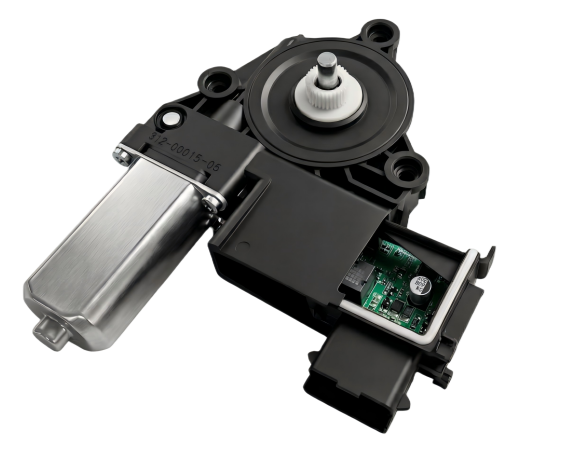

Smart Motor
- Functions
- Power Window Lifter ECU embedded in window motor assembly
- Window up/down control for framed or frameless doors with short-distance window anti-pinch capability
- With switch control and LIN control interface
- Software re-flash function with LIN interface
- Performances
- Operating voltage：9-16V，Temperature range： -40~85°C
- Window Anti-Pinch Force： 75N±15N，Quiescent current： <100μA
- Communications
- LIN Communication, slave node
- Regulations
- Window anti-pinch function fulfill with regulations：GB11552, 74/60/EEC (2000/4/EC), and FMVSS118-S4
- Restricted substances：ELV, REACH, POPS, Asbestos, BPR
