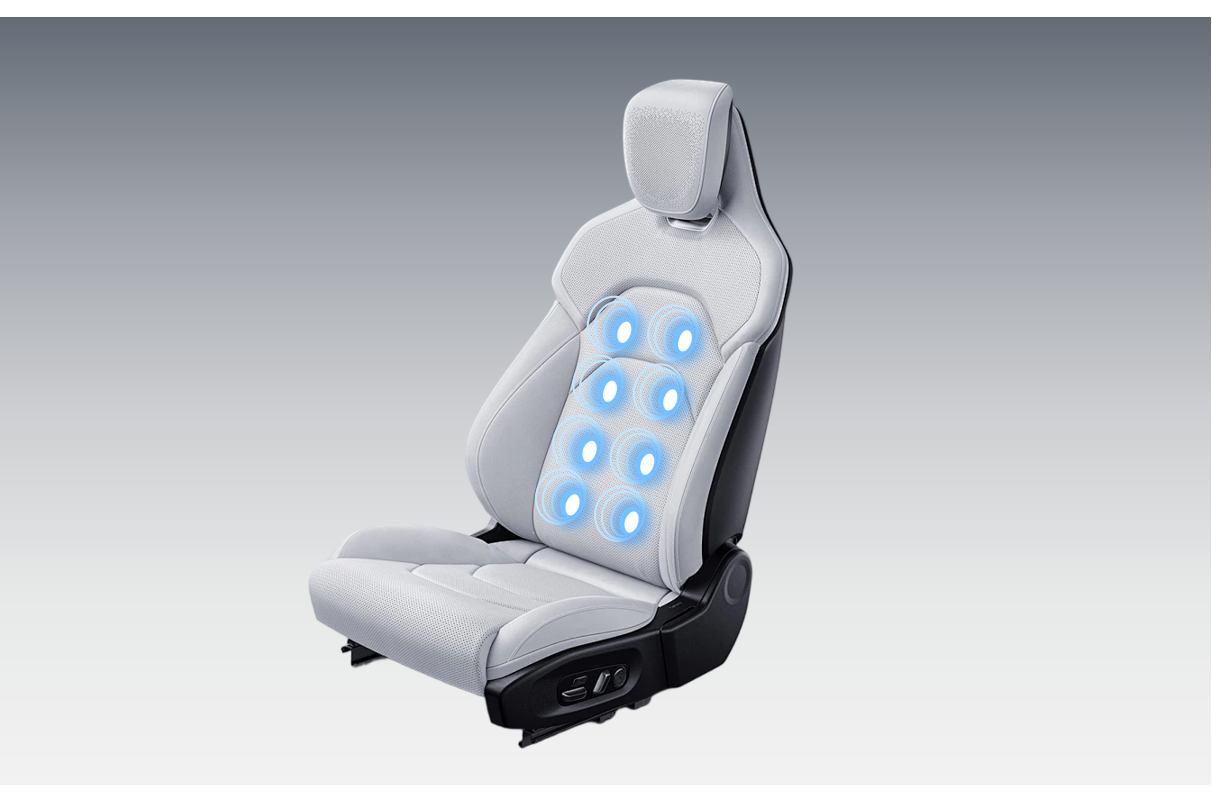

Seat Pneumatic and Lumbar Massage System
- Functions
- Adjustable lumbar support with memory function
- Pneumatic massage for seat cushion, legrest, and backrest
- Active/passive side lumbar support
- Multiple massage programs and intensity levels
- Performances
- Operating voltage： 9-16V，Temperature range： -40~85°C
- Water/dust resistance： IP67，Quiescent current： <100μA
- Working current： <1A，Noise：<38dB，Durability： ≥30,000 cycles
- Communications
- LIN/CAN
- Regulations
- EMC： Class 5，Restricted substances： ELV

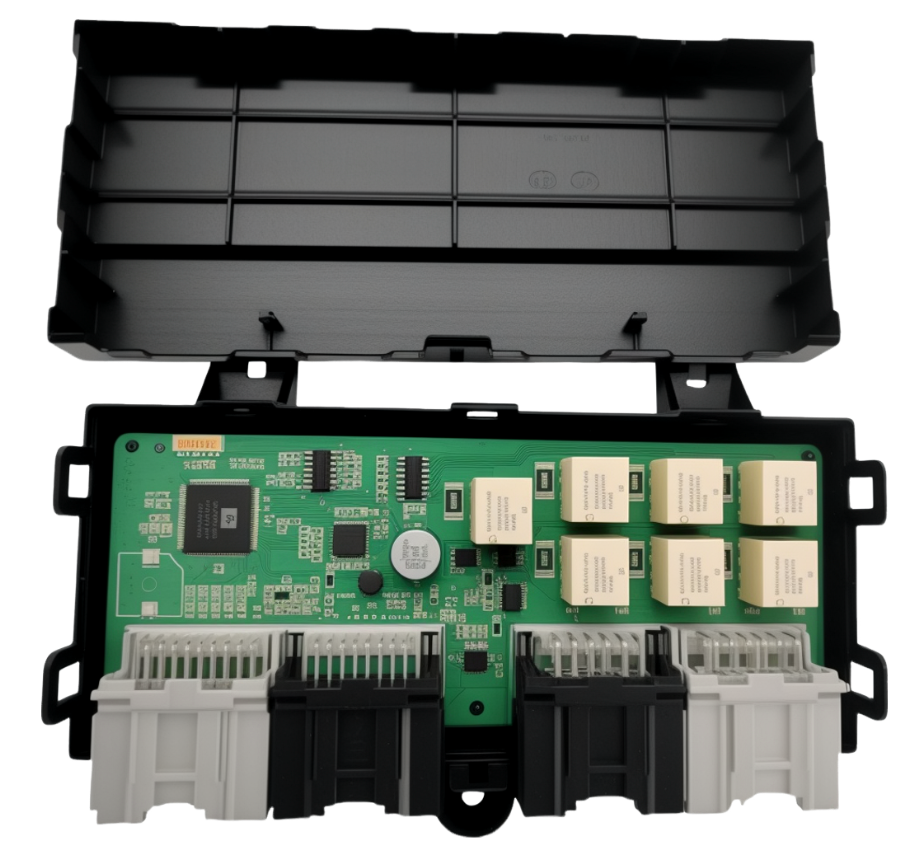

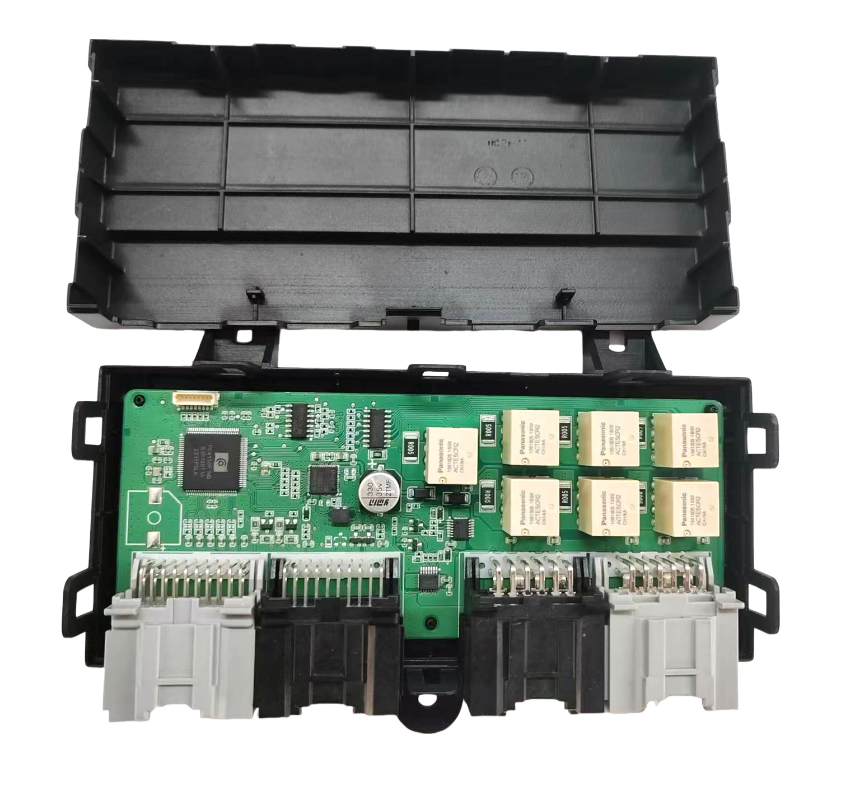

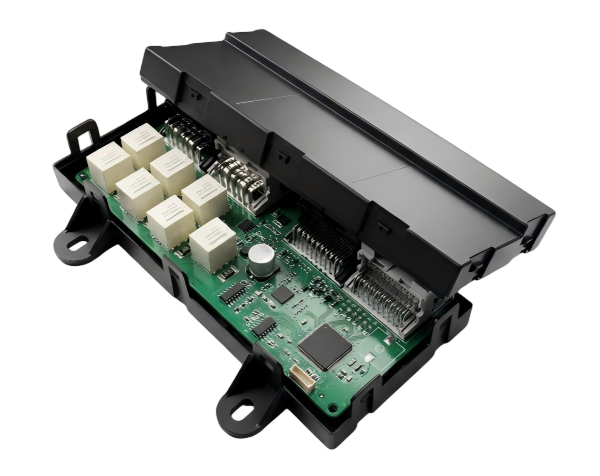

Seat Control Unit
- Functions
- Achieves multi-angle adjustments of the slide rail, legrest, seat backrest, etc.
- Rapid heating coupled with seat ventilation system, realizing precise temperature control achieved by combining advanced industry-leading software algorithms
- Anti-pinch protection with ASIL-B functional safety level, avoiding unexpected performance during use and preventing human injuries
- Memorizing seat position, including simultaneous linkage of multi-direction motors
- Realizes self-diagnosis of faults, monitoring situations such as motor stalling, over-temperature protection, and sensor failure
- Multiple solutions for chips to meet customized requirements
- Performances
- Water and dust protection：IP5X2，Operating current：252mA - 487mA
- Operating humidity：0% - 100%，Altitude range：- 140m~+ 4500m
- Communications
- CAN FD / Hard-wire
- Regulations
- EMC：Spec V5.0，Prohibited substances：ELV
- Functional safety： ISO - 26262 standard

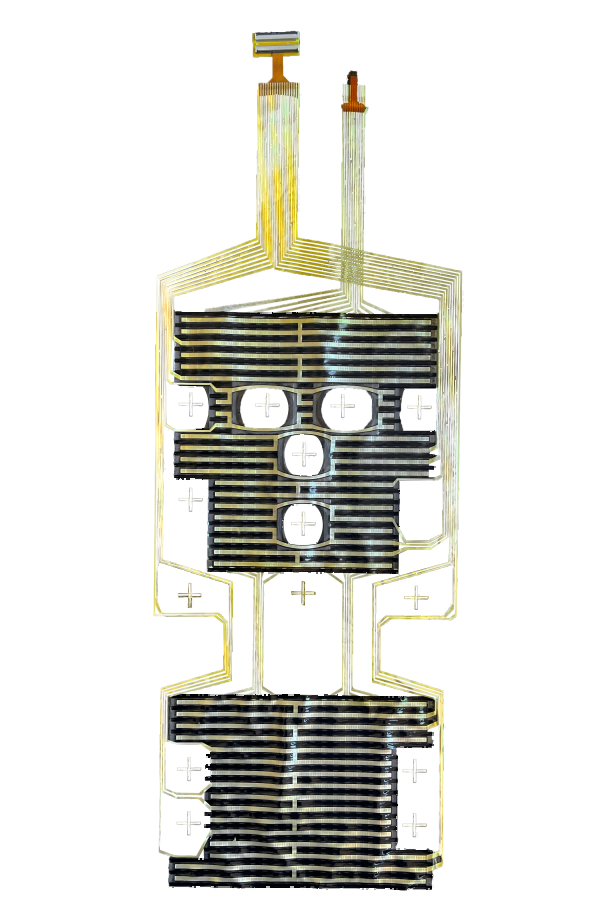

Seat Occupation Classification Sensor
- Functions
- Utilizes accuate algorithms to detect weight, height, and sitting posture, realizing occupant classification
- Domestic/imported chips to meet all customer needs
- Performances
- Operating voltage： 9-16V，Temperature range： -40~85°C
- Water/dust resistance： IP67，Quiescent current：<100μA
- Working current： <30mA，Thickness
- Communications
- LIN/CAN
- Regulations
- EMC：Class3，Restricted substances：ELV，Safety：OTTC
