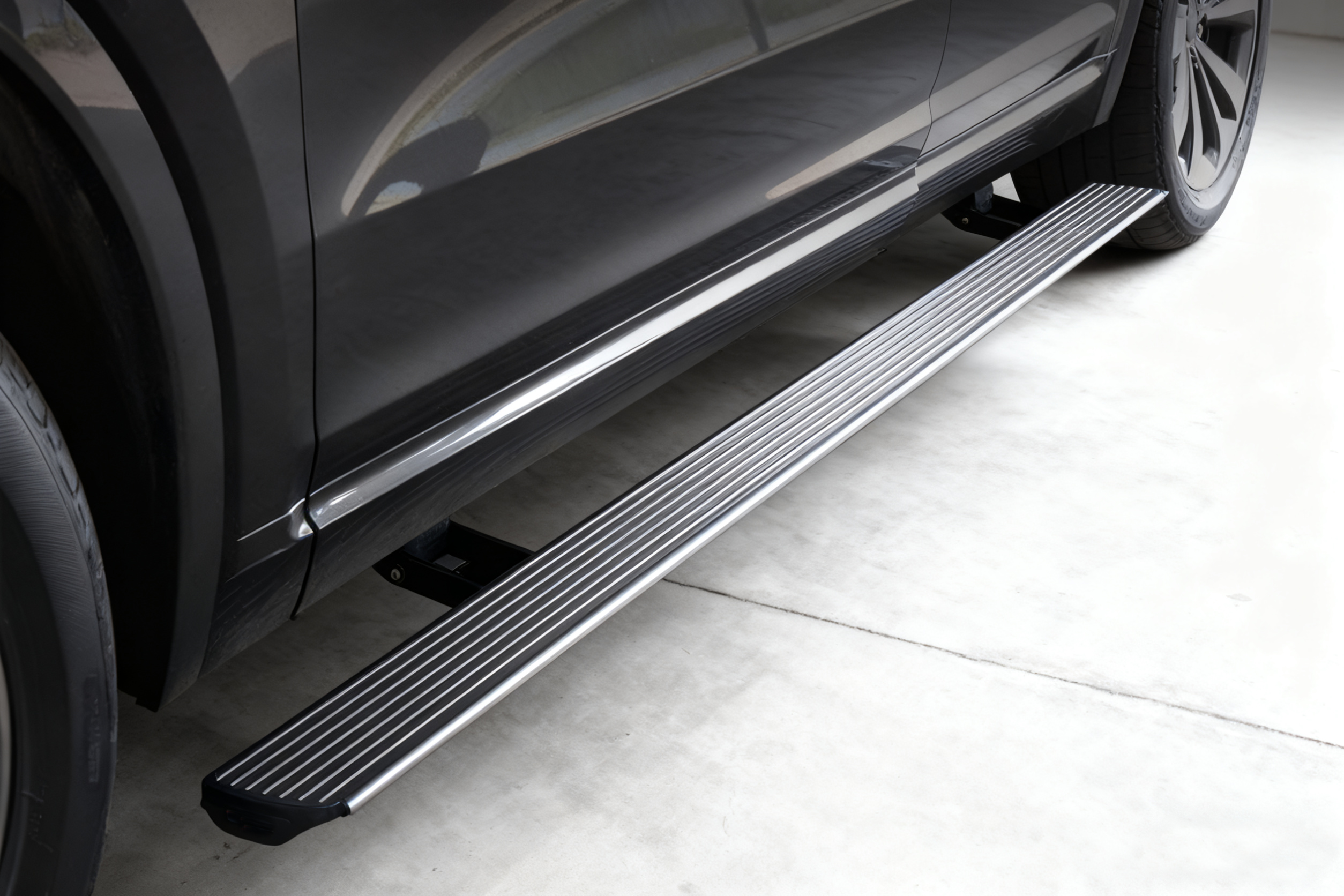

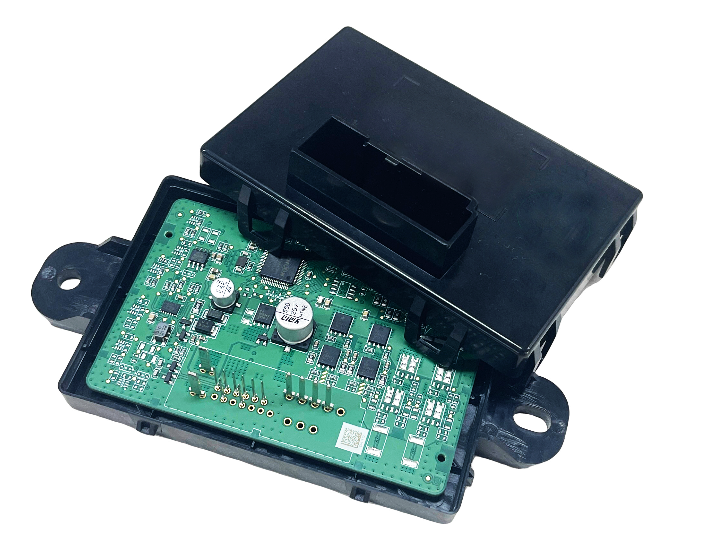

Electric Side Pedal Controller
- Functions
- Equipped with unfolding and folding functions
- Can follow door commands or control through the central control screen UI interface
- Equipped with motor position closed-loop control and PID speed regulation algorithm
- Capable of functional safety level ASIL A, FTTI
- Equipped with common protection functions such as short power supply, short ground, open circuit, overcurrent, etc
- Equipped with diagnostic function, real-time monitoring of product and external load working conditions
- Equipped with anti pinch protection, locked rotor protection, thermal protection, and ice breaking ability under extreme conditions
- Support pedal light with illumination indication; Supports CANFD and has vehicle OTA function
- Performances
- Working voltage range：9V – 16V，Working current：＜ 54mA
- Working temperature range：-40 ℃ -+85 ℃，Protection level：IP50
- Pedal anti pinch standard force：100~150 ± 10N
- Backlight illumination：white, 8 ± 2 cd/mm2
- Load motor for this project：maximum locked rotor current of 28A, unfolding&folding time<1.5S
- Communications
- CAN/CANFD bus protocol
- Regulations
- Electromagnetic compatibility EMC

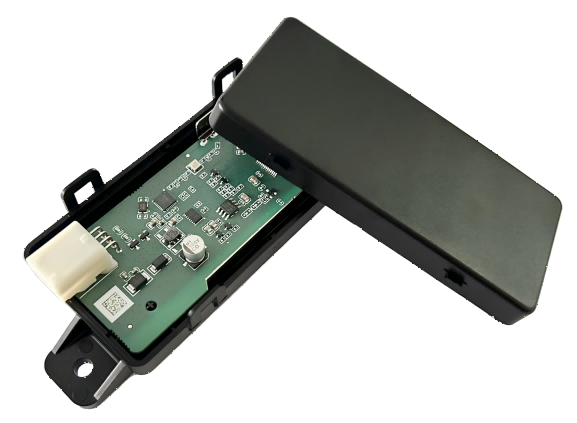

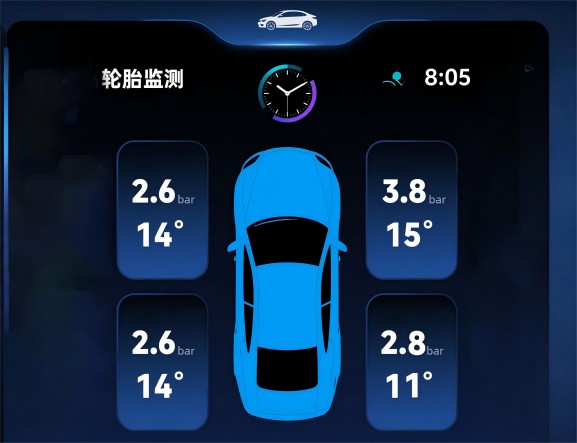

Radio Frequency Receiver
- Functions
- Receiving RF signals from 4 TPMS sensors and bypass to Zone Controller with CAN FD
- Receiving RF signals from Charge Station and bypass to Zone Controller with CAN FD
- Secure OTA Update
- Performances
- Operating voltage：9-16V，Temperature range：-40~85°C
- Quiescent current：<100μA，Quiescent current at Polling Mode：<800μA
- IP Grade：IP52，Receive Sensitivity：-95dbm
- Receive Frequency：315MHz/433MHz, ASK and FSK
- Communications
- CANFD Communication
- Regulations
- ECE R141 Uniform provisions concerning the approval of vehicles with regard to their Tyre Pressure Monitoring Systems (TPMS)
- FMVSS No. 138 Tire pressure monitoring systems
- Restricted substances
Body Control Module
- Functions
- Internal and external lights control
- 4 Windows up and down control with anti-pinch protection
- Central door lock control
- Front and rear wiper and washer
- Passive entry and passive start with remote control
- Controls entire vehicle power, mirror, and heating
- Performances
- Window Anti-Pinch Force：75N±15N，Quiescent current： <3mA
- Up to 270 channel IO, output current 30A at maximum
- Communications
- 1 Channel 100BASE-T1, 5 channel CAN, 9 Channel LIN communication
- LF transceiver channel, 125±2KHz
- Regulations
- Window Anti-Pinch function fulfill with regulations：GB11552, 74/60/EEC (2000/4/EC), FMVSS118-S4
- Restricted substances：ELV, REACH, POPS, Asbestos, BPR
